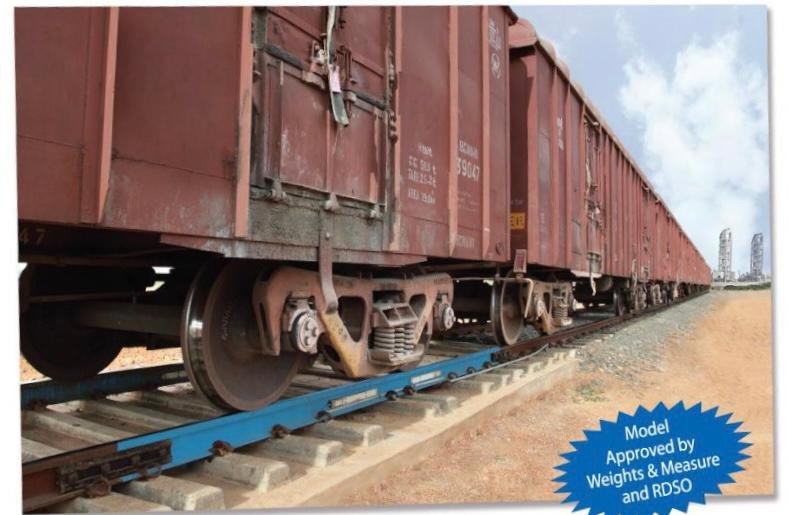

WeighBridge- In Motion

 850,000.00

Description

We provide superior quality rail weighing systems, automatic weighing systems that are based on latest technology. Our rail in motion weighing systems is available in customized mode to meet the exact demands of our clients. Our wide array of rail in motion weighing systems comprises of the following:

 Combo rail in motion weiging system designed in accordance with the worldwide requirement RAILWAYS/RDSO. The system design is very simple yet powerful, allow you to install the system in short span even at a very narrow curved line. The system has been designed with new and simple algorithm to deduct complex engine and wagon’s track pattern. The improved Rail Sensor design allow our combo rail fit for even short span of Straight Line requirement even less than 45Mts . The user has get wide choice for the software, inter connectivity vie Ethernet, GMS, USB. The system can be simple pit and Pitless design.



  • Weighing Capacity : 120 T for individual Wagon
  • Type of Wagon : All types of standard Wagons of Indian Rly.
  • Type of Weighing : Axle
  • No. of Axles : 2, 4 axles wagons
  • Axle: Load : 45 Ton (Maximum)
  • Weighing Speed : 15 KM/Hr.
  • Direction of Weighment : Bi Direction
  • Load Sensor Type : Strain gauge, hermitically sealed
  • No of strain gauges per weigh Rail : 2
  • Surge protection : In built
  • Safe over load withstand capacity : 150% rated capacity
  • Calibration : Automatic
  • Increment : Selectable 20/50/100 Kg
  • Accuracy : (+) / (-) 0.5% for wagon (+) / (-) 0.2% for complete rake
  • Power Supply : 230 V, +/- 10% single Phase 50 Hz
